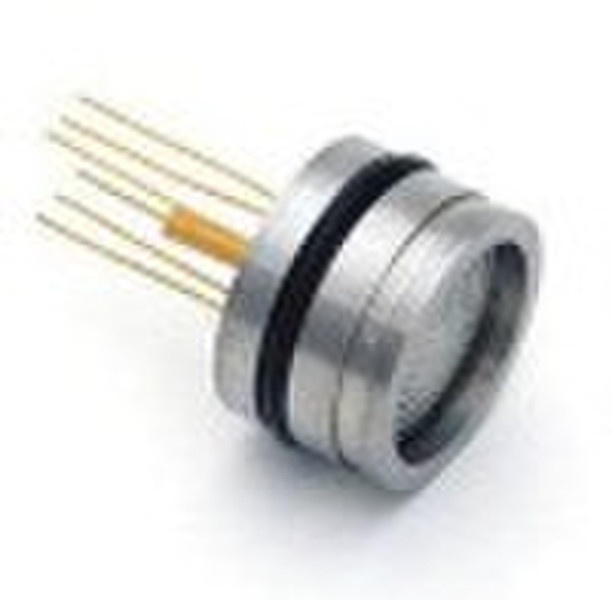

silicon pressure sensor

Silicon pressure sensor, silicon sensor, pressure sensor, sensor Pressure sensor Specifications: SPS19 a stainless steel diaphragm is welded in the front of the forced surface of the sensitive element. The press is passed to silicon chip by silicon oil. So measure to all sorts of gaseous and liquid medium compatible with stainless steel and special rubber is completed. Application Area Process engineering General measuring technique Environment technique Medical technology Hydraulics and mechanical engineering Technical data Range: 35kPa(5Psi) 35MPa(1000Psi) Non-linearity: ±0.2;±0.3(% of Span,BFSL) Repeatability and Hysteresis: 0.1(% of span) Zero output: 0±1(mV at 1.5mA) Span output: 100±30(mV at 1.5mA) Zero temperature error: ≤±1(% Span in ref,to25) Span temperature error: ≤±1(% Span in ref,to25) Compensated temperature range: 0-70
